Specifications

Item Name: MICROSCOPE
Magnification: 7X-90X
Eyepiece: WF10X
Lenses: 0.5x
Real angle of view: 45 degrees
Working distance: 100mm, 165mm with 0.5x

Purchase at the official flagship store of Katway and enjoy lifelong after-sales service for critical component repairs

FeaturesThe microscope features optical performance design, large zoom ratio, long distance work and wide field, is an essential tool micro-inlay for jewelry industry.

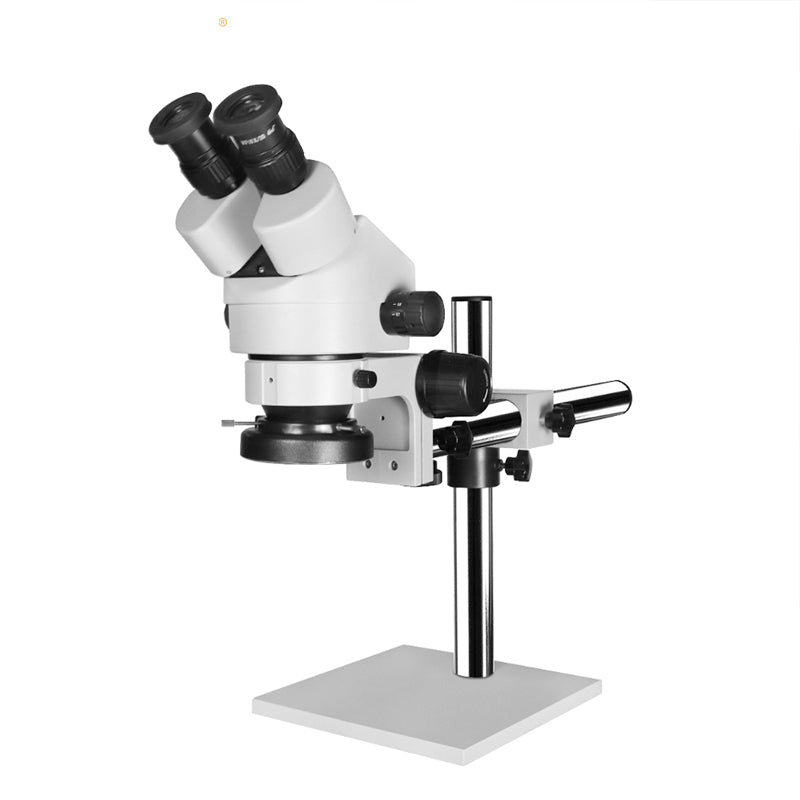

1. Professional stereo microscope with boom stand has long working distance to enable users to perform work or manipulate large items, including circuit boards and dental appliances.
2. Single boom arm with 14.5" vertical working distance and adjustable 16" boom arm enables users to adjust the microscope on the X- and Y-axes.
3. The micro inlaid mirror using a wide-angle vision technology, continuous zoom stereo microscope head, high-resolution, large view field, stereoscopic, easy to operate.
4. The durability of the micro inlaid mirror parts has been improved greatly after optical mildew treatment.

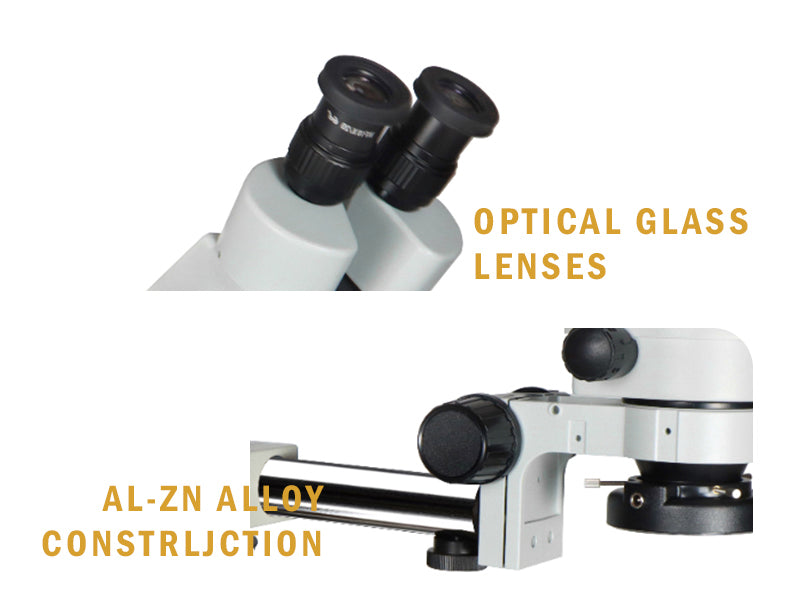

Al-Zn Alloy & Optical Lenses
The stereo microscope is made of sturdy Al-Zn alloy with high strength and premium optical glass lenses to provide a high-resolution image.

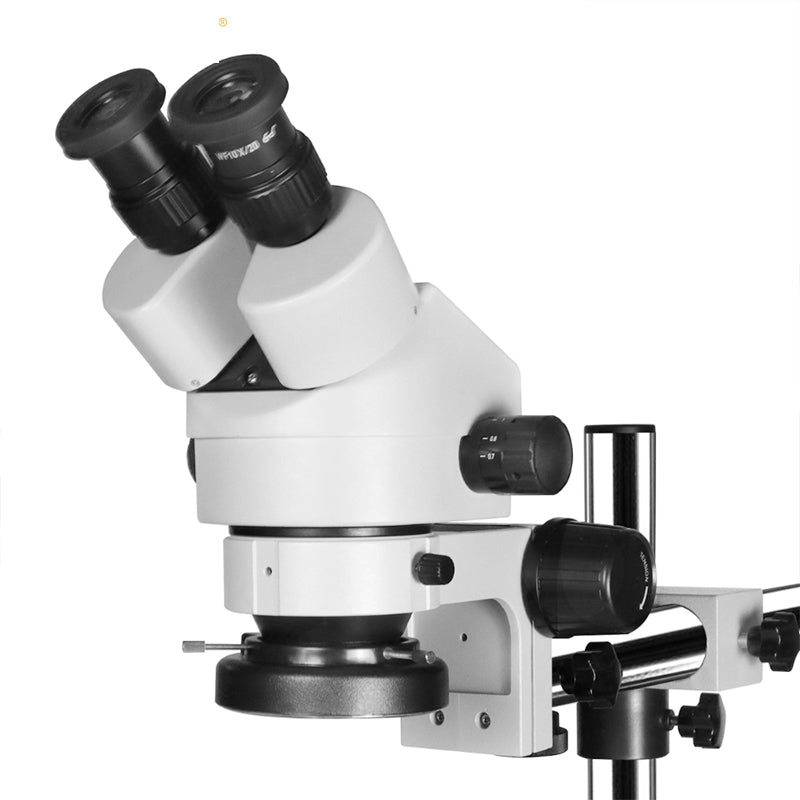

Binocular Stereo Imaging
This microscope is designed with binocular stereo imaging technology, supporting 7X-90X continuous zoom and interpupillary distance adjustment.

Wide Aperture Objective Lenses
The objective lenses are built with pure copper material and coated with anti-reflecting films, featuring a wide aperture and bright vision field.

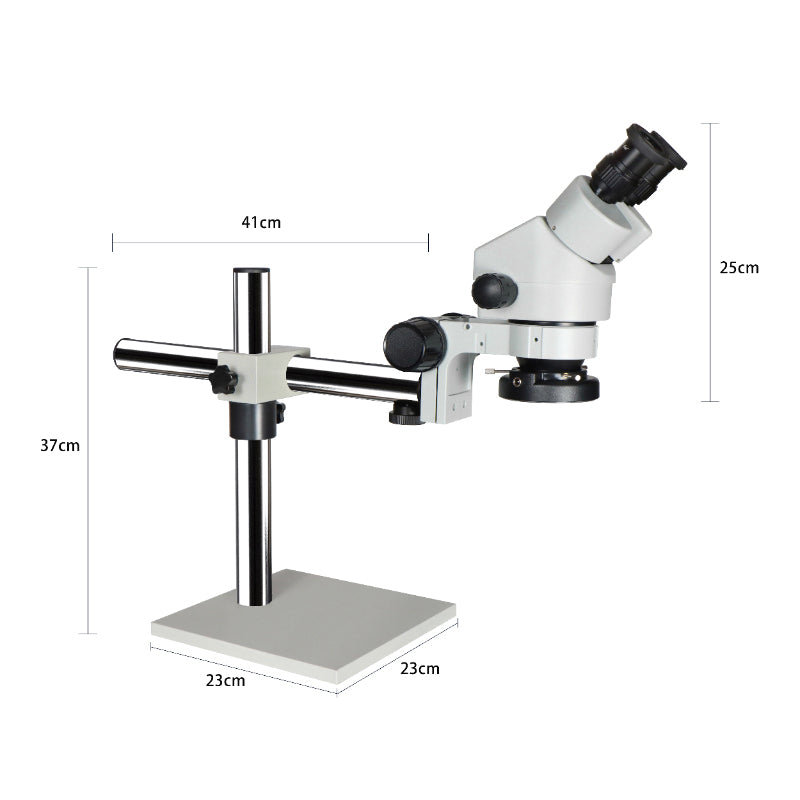

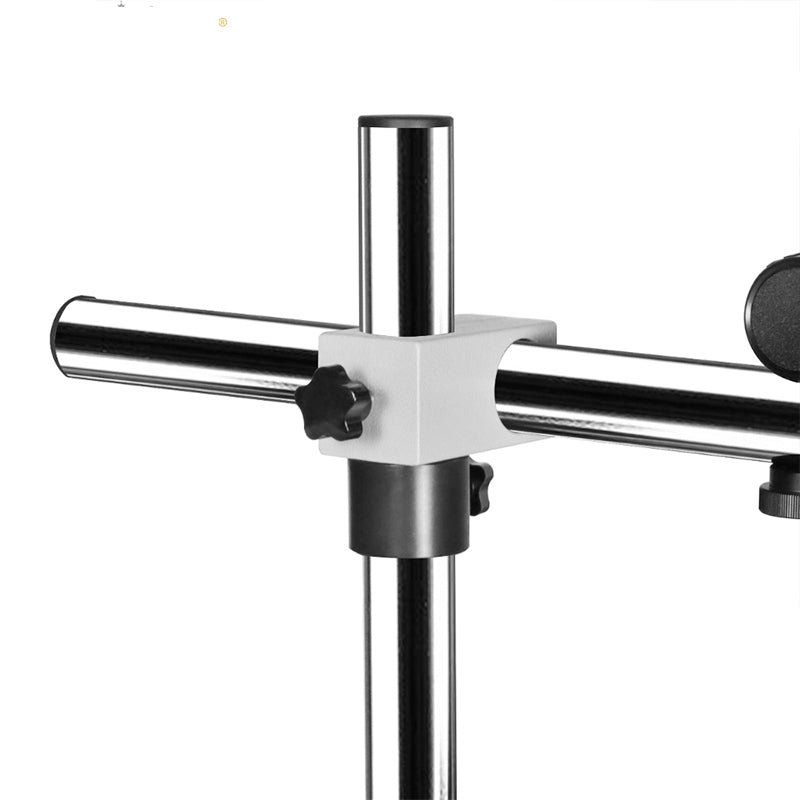

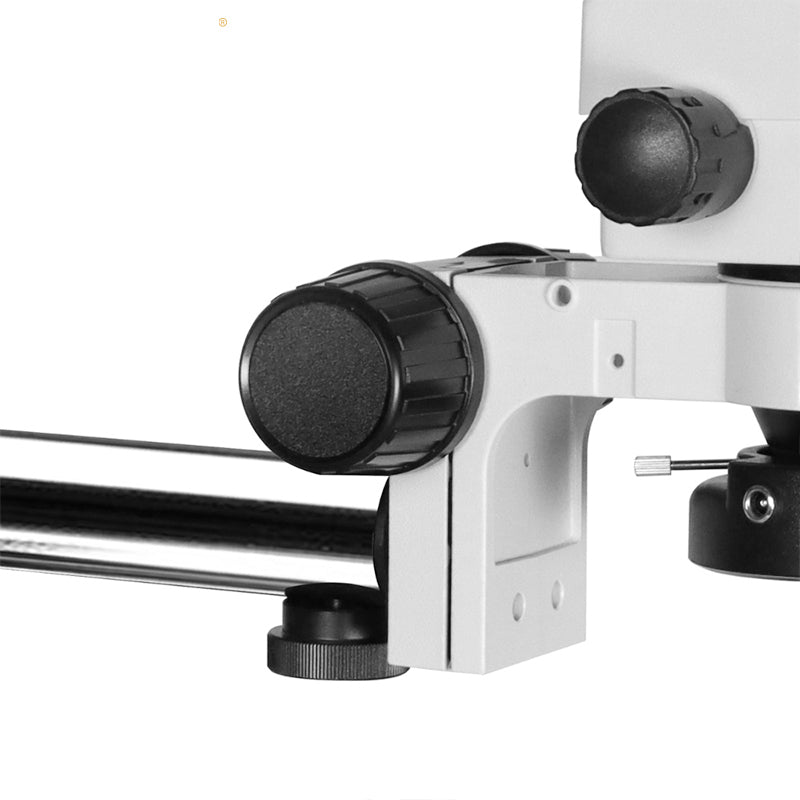

Adjustable Boom Stand
The stand is height adjustable with a working distance of 95-300 mm (3.74-11.81 inch), and the boom can move forward/backward to cover a large work area.

Extensively Used
This digital microscope kit is widely used for the electric industry, insect observation, scientific research, jewelry identification, and textile industry.

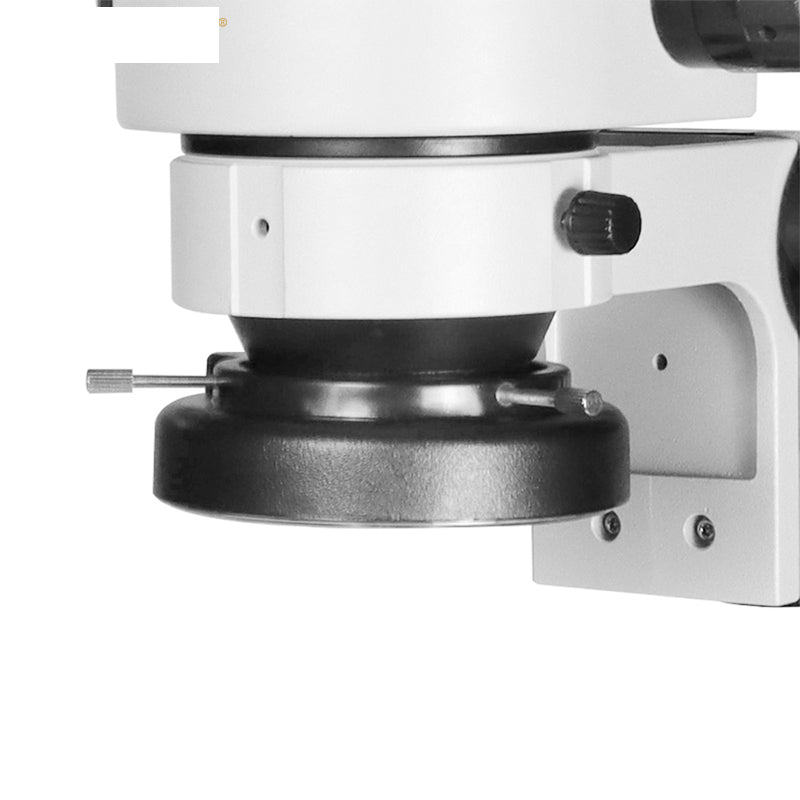

Bright cool light 56-LED illumination system
