10 Tips To Teach You How To Solder Jewelry

Jan 06, 2025

Are you worried about the soldering technique for making jewelry? Many people think that soldering is a delicate and complicated thing, which is only half right. Jewelry soldering does require delicate operations, but it is actually not complicated. Once you master the skills and know where to start, you can You can calmly deal with various problems without wasting your expensive materials. The most feared thing about jewelry soldering is a melting disaster. Many beginners will feel anxious about this, don't be afraid, in this article we will work with You share some practical tips during the welding process to help you overcome various difficulties.

Clean the material you need to weld

You have to make sure the surface is smooth and spotless. Note that I said smooth. Any imperfections will make it difficult for the solder to flow to where it should go. If you are soldering a piece of recycled material, be sure to clean the oil and rust on the surface. I recommend using sandpaper with a grit of 1000 or above to quickly sand the metal surface to achieve a clean effect.

Preheating

The metals used in jewelry are usually very good at conducting heat, such as silver, copper, brass, etc., so many heat dissipation components will give priority to these materials. However, during the jewelry welding process, no matter how your spray gun focuses the flame, the heat will quickly transfer to other parts of the metal.

Using the soldering ring as an example, you must heat the entire ring to a temperature close to where the solder will flow. Once this is done you can then focus the torch on the solder joint and heat the area around it until the solder flows.

Choose the right solder based on the size of the solder joint

If you are like me and don't like rough solder joints, you need to choose the right solder. If the solder joint is small, you need a smaller volume of solder to accurately control the flow. And smaller solder melts faster. If you use a large volume of solder on a small solder joint, there is a possibility that the solder will melt too much and cause a rough nodule in the joint.

If you need a smaller piece of solder you can use scissors to cut a small section from the rest of the solder and use a hammer to forge it into the right shape. Solder is a very soft metal and is very easy to cut and shape.

Using Flux

We need to make sure the solder is melted and can flow over the surface, but the soldering area will oxidize and produce other substances during the high temperature process. As we said before, solder cannot flow on dirty surfaces, so the role of flux is to protect the soldering area from oxidation. When heated, it forms an airtight barrier around the solder joint, so for a certain period of time, it will prevent oxidation.

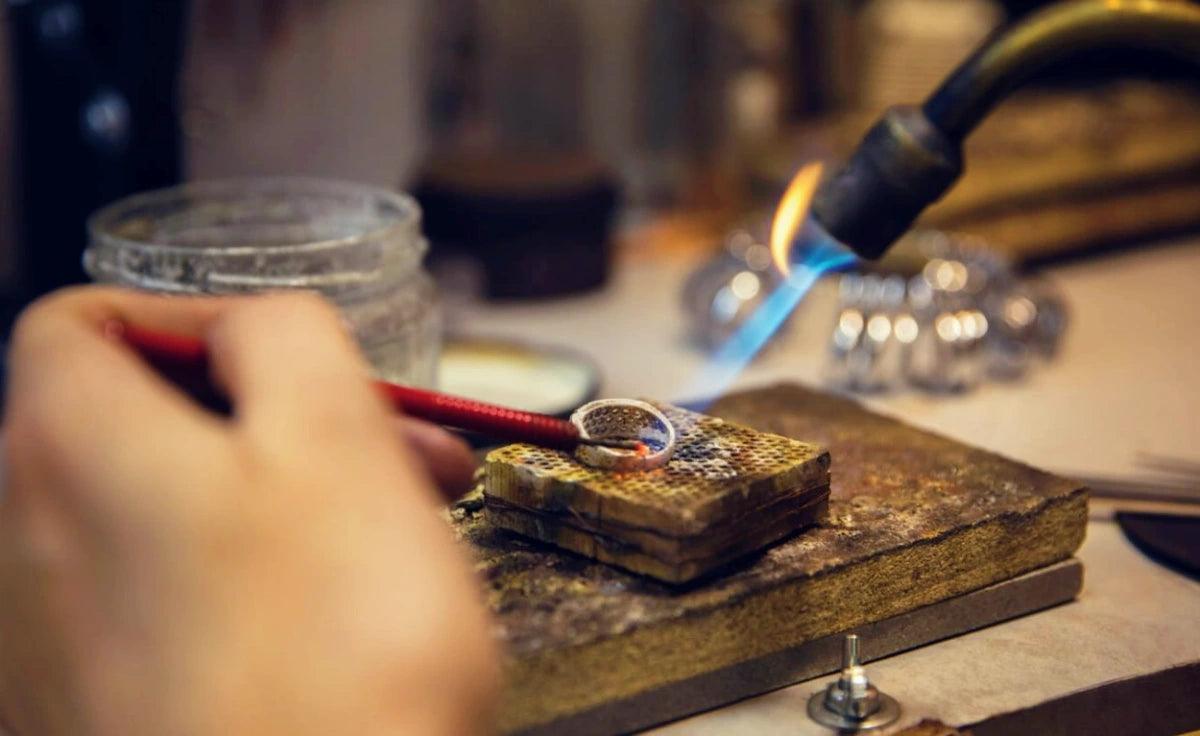

Heat the metals to be welded

When welding, we do not heat the solder directly until it melts. If we do this, even if the solder melts, it will immediately cool down to form a molten ball when it touches the cold solder joint, and the solder cannot flow into the solder joint. To avoid this problem, the key is to heat the metal to be welded to a temperature high enough to melt the solder, so that the heat of the metal can be transferred to the solder, and the solder can flow cleanly into the solder joint.

Be careful about the heat being sucked away

The key to soldering is to control the temperature and avoid the heat of the solder joint being sucked away as much as possible. When you have to use tweezers to clamp it, clamp the bottom as far away from the solder joint as possible. And heating the tweezers before soldering will also help a lot.

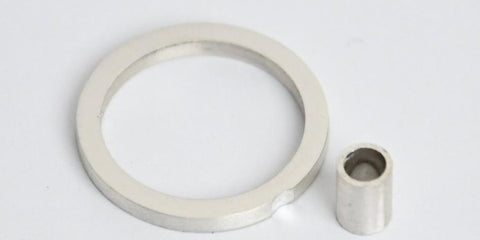

Expanding contact area

The contact area refers to the surface area of the connection. Imagine welding a curved part to a straight frame. The contact area between the arc and the straight line is very small, and the weld will not be strong. You can use a file to file a curved part on the straight frame, as shown in the figure below, and then weld it. This way, the welded workpiece is both beautiful and strong.

Don't be afraid of the bigger fire

If you exclude the problems we mentioned above and still find that the solder melts but does not flow during soldering, it is likely due to insufficient flame of the welding gun. Try to adjust the flame and increase the temperature. The hottest part of the flame is the tip.

Take time to adjust

Don't rush when welding. Before you light your welding torch, take a moment to check that your workpiece is properly prepared and make sure everything is perfectly aligned, otherwise it will not be easy to make adjustments after welding.

Using some simple tools

In addition to the welding gun, you also need some simple soldering tools to help you. For example, cheap welding tweezers and high-temperature resistant carbon blocks, as well as some protective suits. Usually, for delicate operation, the hand holding the welding gun will not wear gloves. Of course, there are other new welding solutions that will also require more tools and skills, so there is no need to stick to them.
